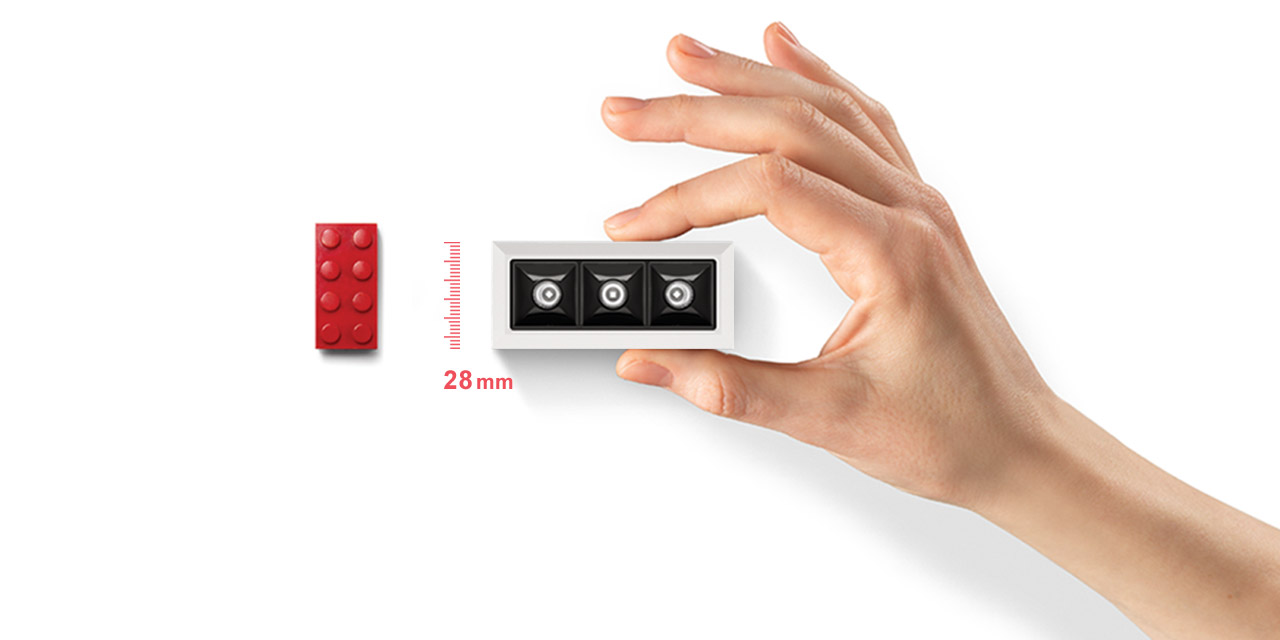

Laser Blade XS High Contrast

Lighting Effects

Product Details

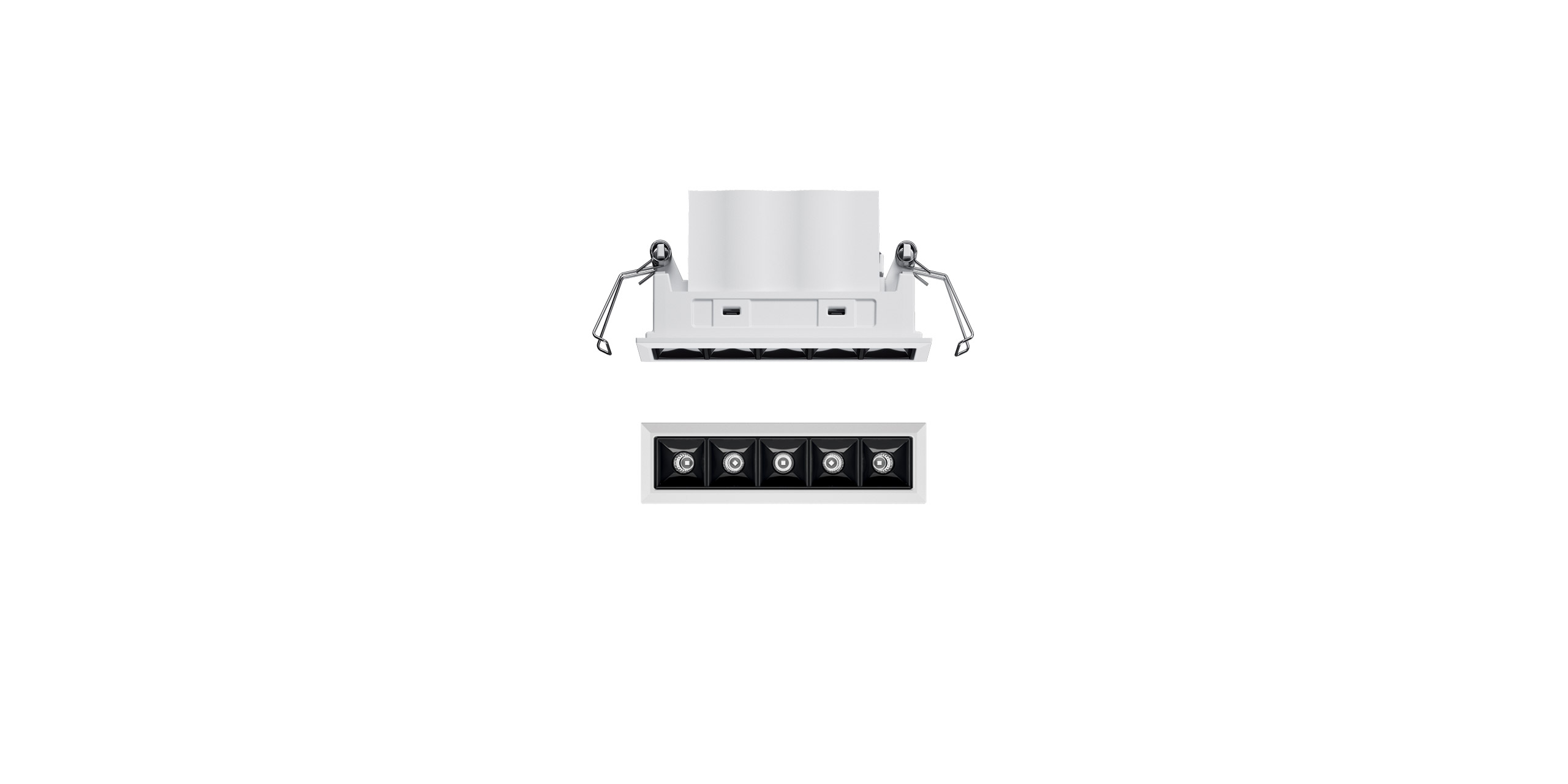

Flush mount installation in false ceilings with 12.5 – 15 – 20 mm thickness for Minimal versions (without perimeter rim) or from 1 to 25 mm thickness for Frame versions (with rim) using torsion springs.
Main body with radiant surface in die-cast aluminium.
High definition optics in metallized thermoplastic, built into the innovative black anti-glare screen that defines emission with controlled luminance UGR<10 (for medium and flood UGR<10, for wide flood UGR<19).
Tunable White versions are available (2700K ÷ 5700K).
The special configuration of the optical system delivers a precise circular distribution without punctiform effect.
High visual comfort.
Installation without tools.
The minimum sizes of the installation compartment are displayed in the instructions sheet available on the online catalogue.
IP20
IP23 for visible body of fitting after installation.

Confiugurator

6760 combinations available.

* Now you can select the fittings you need using the new iGuzzini Configurator. For this reason you can't find the code lists anymore below in this page.

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included

Discover more

Where are the product codes?

You can now conveniently configure this product with all available combinations using the new Configurator.
The new "DNA" codes obtained have the same function as the old 4-digit codes, you can use them to request quotes and order products.
Quotes and orders made with the old 4-digit codes remain valid.
You can always search for the old 4-digit codes using the Code Finder.
